The "Arca-Swiss Style" Quick-Release Geometry The "Arca-Swiss Style" Quick-Release Geometry refers to the open-cavity dovetail quick-release system developed decades ago by Arca-Swiss for use with their Monoball ball heads and large format cameras. After the extreme popularity of the Arca-Swiss B-1 ball head in the 1990s, other companies began manufacturing custom camera-body and lens plates using this geometry. Since then, this geometry has become the industry standard for high-end tripod heads (particularly in the nature photography industry). The figure below shows the basic dimensions of the dovetail used in this system:

The Wimberley Head Version II, Sidekick, and other clamps use this quick-release system, so any lens that you wish to connect to our heads must be equipped with an Arca-Swiss style lens plate or replacement foot. Manufacturers that use the Arca-Swiss Style Quick-Release Geometry include:
Acratech Arca-Swiss Foba Giottos (only on their most recent line of ball heads & plates) Hejnar Jobu Kirk	Markins Novoflex (only on some of their products) Promediagear Really Right Stuff Studioball Wimberley

Flash Brackets

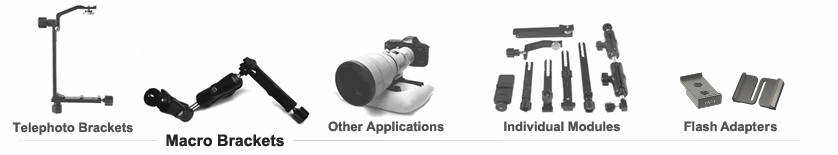

Collage of WimberleyTelephoto Bracket highlighted and Macro Bracket and modules and accessories

Single-Arm Setup

F-2 Macro Bracket ($169.00)

This bracket consists of modules M-1 & M-4.
The articulating arm on this bracket is comprised of two double ball and socket links that lock positively and offer a great range of flash positions. The bracket attaches quickly to your lens or camera body plate with a narrow Arca-Swiss style quick-release.

Click here to make sure that your existing plates are long enough accommodate this bracket.

Adding the M-8 Perpendicular Plate (see bottom of this page) makes it more convenient to use this bracket on your camera body.

Download Product Instructions -

Collage of Wimberley F-2 Macro Bracket holding flash in 3 different positions

Dual-Arm Setups

Wimberley F-2 Macro Bracket Dual Arm Setup installation on lens plate with camera and lens

Dual-Arm Setup for Collared Lenses

In order to use two flashes on a collared lens, attach two F-2 Macro Brackets to your lens. It is necessary to use a Wimberley lens plate on your lens to ensure that you will be able to attach both brackets to the lens plate. Our double-dovetail plates allow you to attach one bracket to the top surface of the plate, and one to the bottom surface.

Click here for more info on Wimberley lens plates.

Wimberley F-2 Macro Bracket Dual Arm Setup installation on M-8 Perpendicular Plate on camera with P-5 Camera Body Plate

Dual-Arm Setup for Camera Bodies

In order to use two flashes on your camera body, you must first attach the M-8 Perpendicular Plate (see bottom on this page). This gives you a dovetail that is large enough and oriented in the proper direction to accept multiple flash brackets. Attach two F-2 Macro Brackets to the Perpendicular Plate to complete the setup.

Useful Add-Ons

Module 8 - M-8 Perpendicular Plate ($85.00)

The Module 8 allows you to attach your camera body to the Wimberley Head.

This module allows you to attach the F-1 Telephoto Bracket or multiple F-2 Macro Brackets to your camera body.

It is also useful as a small macro slider for making small forward-backward adjustments for macro photography and for attaching a camera body, with small lens, to the Wimberley Head.

Download Product Instructions -

Wimberley M-8 Perpendicular Plate mounted to camera using P-5 Camera Body Plate and showing fore and aft movement

The M-8 Perpendicular Plate attaches to the Arca-Swiss style plate on your camera body. It gives you a dovetail plate that is parallel to the axis of the lens.
