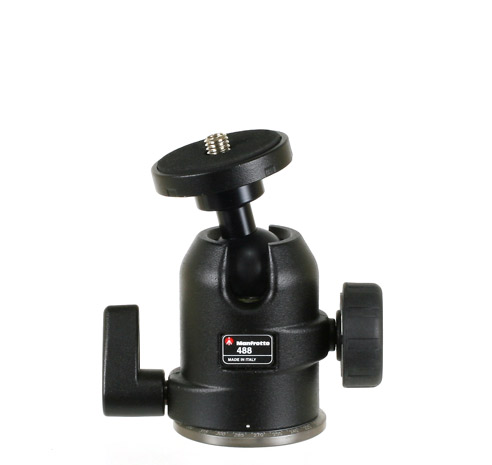

Manfrotto 488

(Click on Image to Enlarge)

Note: On this particular ball head, there is no anti-twisting mechanism (e.g. set screw or pin) to keep our retrofitted clamp from potentially loosening in the field. For more security, we recommend using epoxy or loctite to keep the clamp from twisting. Even with loctite, we do not recommend using this retrofitted clamp with the Sidekick because the particular geometry of the Sidekick puts significant stress on this connection.




Wimberley Clamp to Install:

The C-10 AS clamp (2.5" in length) with hardware is used for retrofitting specific models of Arca Swiss, Cullman, Giottos, and Manfrotto ball heads.



  Hardware/Tools Included
-Flat Head Screw - M6 X 30mm
-Hex Key - 4 mm (or 5/32)

C-10 AS ($79.00)





Retrofit Instructions:

Hardware/Tools not included (customer must provide):
-10mm Socket wrench (Deep Socket)
-Hex Key - 2 mm (or 5/64)

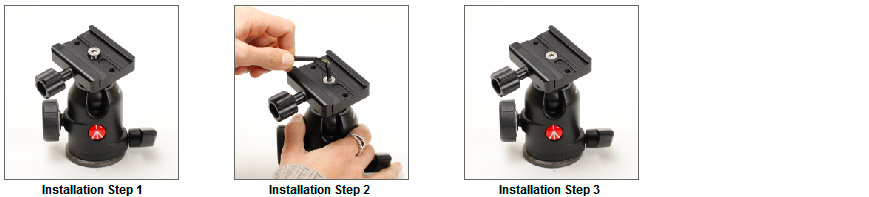

Loosen the set screw with the enclosed 2mm hex key. Unscrew the mounting platform by hand. Remove the mounting platform and loose hardware. Unscrew the clamp's central fastener using a 10mm Socket Wrench.

Insert the enclosed 6mm fastener.

Tighten the fastener with the enclosed 4mm hex key. Installation complete
