P-5 Camera Body Plate

P-5 Camera Body Plate ($52.00) What's Included

We set out to design a simple Arca-Swiss style universal plate that provides the same quality of construction, solid connection, and anti-twist characteristics of custom plates. The result is the P-5 Universal Camera Body Plate.

Download Product Instructions - Blemished version available

Specifications

Weight: 1.4oz (40.8g)

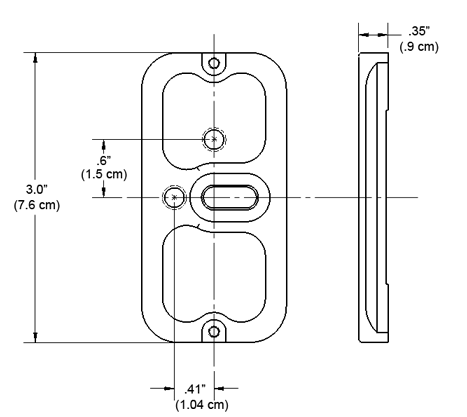

Line drawing of Wimberley P-5 Camera Body Plate with dimensions given in inches

The "Arca-Swiss Style" Quick-Release Geometry The "Arca-Swiss Style" Quick-Release Geometry refers to the open-cavity dovetail quick-release system developed decades ago by Arca-Swiss for use with their Monoball ball heads and large format cameras. After the extreme popularity of the Arca-Swiss B-1 ball head in the 1990s, other companies began manufacturing custom camera-body and lens plates using this geometry. Since then, this geometry has become the industry standard for high-end tripod heads (particularly in the nature photography industry). The figure below shows the basic dimensions of the dovetail used in this system:

The Wimberley Head Version II, Sidekick, and other clamps use this quick-release system, so any lens that you wish to connect to our heads must be equipped with an Arca-Swiss style lens plate or replacement foot. Manufacturers that use the Arca-Swiss Style Quick-Release Geometry include:
Acratech Arca-Swiss Foba Giottos (only on their most recent line of ball heads & plates) Hejnar Jobu Kirk	Markins Novoflex (only on some of their products) Promediagear Really Right Stuff Studioball Wimberley
