Sidemount Wimberley Head™- Specs


	"I'm very happy with the Sidemount conversion kit. Takes away some bulk and weight for traveling." -Jamie Douglas
		More Sidemount Head Testimonials...
	WH-200-S Sidemount Wimberley Head ($445.00) Download Product Instructions - Product Registration
	Weight: 2.3 lbs (1044 grams) Dimensions: (L x W x H): 9.5" x 2.5" x 7.9" Weight Capacity: >100lbs (45kg) (Compatible with the largest lenses in the industry) Note: The WH-200-S has a built-in Arca-Swiss style quick-release clamp. In order to use the head, your lens must be equipped with an Arca-Swiss style lens plate. --Protected by one or more of the following Patents: #7478970 & #7600941--

Specifications	Sidemount Wimberley Head (WH-200-S)	Wimberley Head Version II (WH-200) - For Comparison -
Price	$445.00	$595.00
Weight	2.30 lb (1.04kg)	3.15 lb (1.4 kg)
Weight	>100 lb (45kg)
Max. Dimensions	Height**: 9.25" (23.5 cm) WIdth: 2.5" (6.4 cm) Depth: 8.0" (20.3 cm)	Height: 9.25" (23.5 cm) Width: 3.50" (8.9 cm) Depth: 9.73" (24.7 cm)
Dedicated Flash Bracket	F-9	F-9
Quick-Release Type	Arca-Swiss Style (Buit-in)	Arca-Swiss Style (Built-in)

**Height of Sidemount Wimberley Head is measured with Q.R. knob down (see note & figure below)

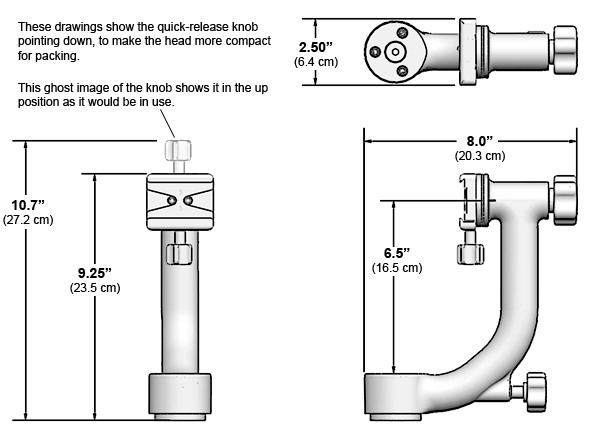

Line drawings of Sidemount Wimberley Head WH-200-S with dimensions
